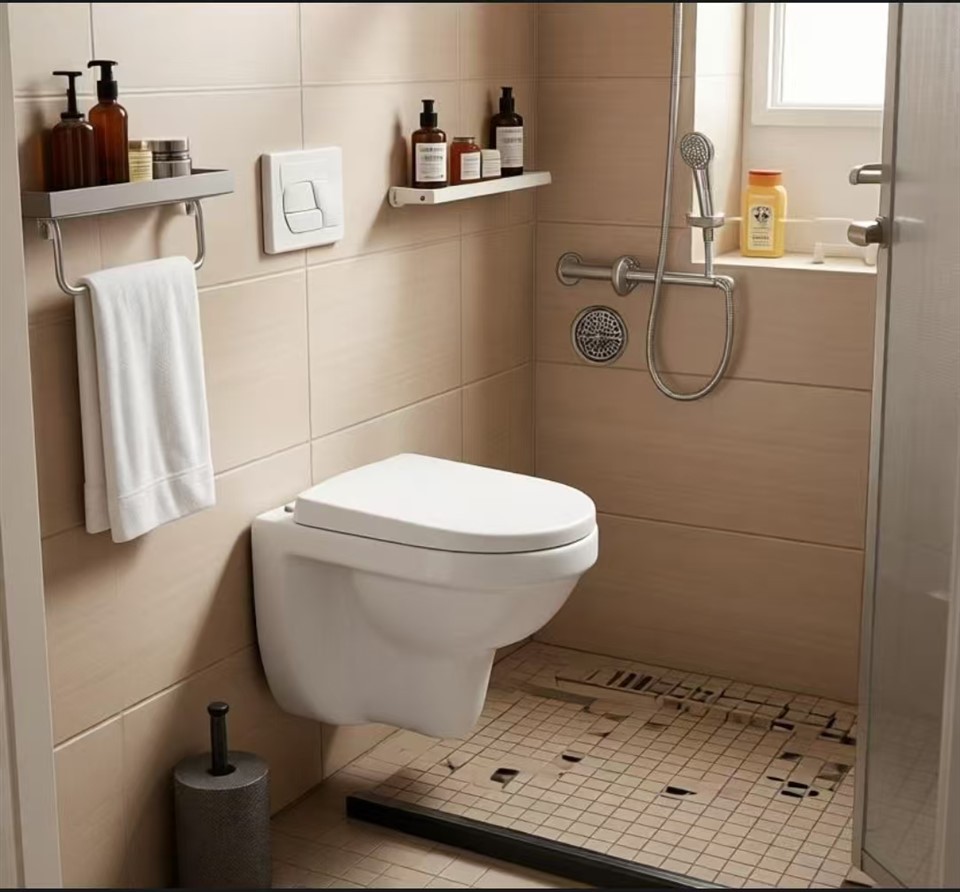

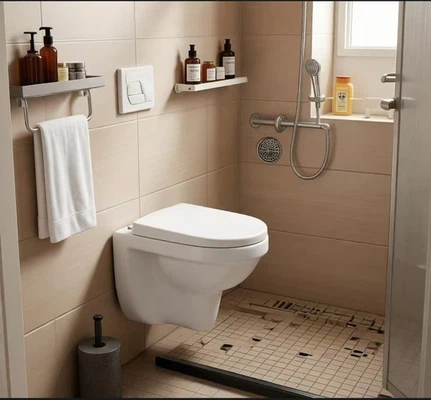

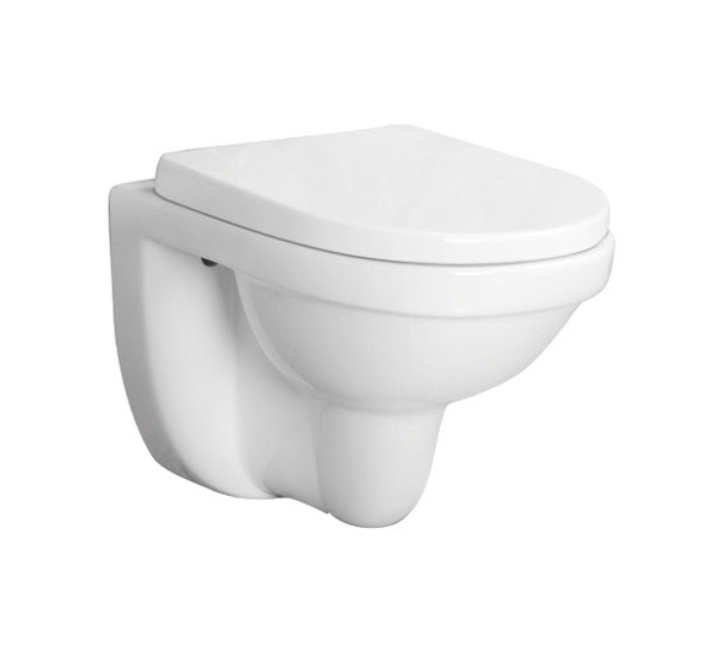

In many European apartment renovation projects, toilet selection becomes a problem only after installation starts. The original layout often leaves limited depth, and floor outlet systems are not always practical to modify. In these situations, a compact wall hung toilet is not just a design choice - it becomes a functional solution. This 520mm compact wall hung toilet is developed for projects where space limitation, wall outlet compatibility, and long-term maintenance need to be balanced carefully.

Where This Model Fits - And Where It Doesn't

This model is mainly suitable for:

- Distributors supplying European or wall-outlet markets

- Contractors handling apartment renovation or residential upgrades

- Importers focusing on compact bathroom solutions

Typical applications include:

- Small apartment bathrooms

- Renovation projects with limited floor depth

- Residential upgrades where cleaning convenience matters

However, to be clear, this model is NOT ideal for:

S-trap dominant markets such as many Southeast Asia regions

- Projects without concealed tank installation conditions

- Quick replacement jobs where wall modification is not possible

What Buyers Usually Struggle With - And How This Model Helps

Space limitation is often underestimated at the quotation stage

In small bathrooms, even 30–50mm difference in projection can affect door clearance or walking space. With a 520mm projection, this model is more flexible in tight layouts.

Cleaning around the toilet base becomes a long-term issue.

Floor-mounted toilets create hidden corners that accumulate dirt. A wall-hung structure removes this problem entirely, which is especially important in rental apartments or hotel-like environments..

Outlet mismatch leads to unexpected rework.

One common mistake is selecting a toilet without confirming drainage direction. This P-trap design aligns with wall outlet systems, reducing installation adjustments and labor cost.

Model No.	FTZ-8804G	Material	Ceramic
Minimum Order Quantity	20pcs	Drainage Type	P-trap
Flushing System	Washdown	Flush Features	Box rim
Flushing Volume	3-6L	Installation Type	wall-hung
Flush Button Type	Dual flush	Toilet Bowl Shape	Round

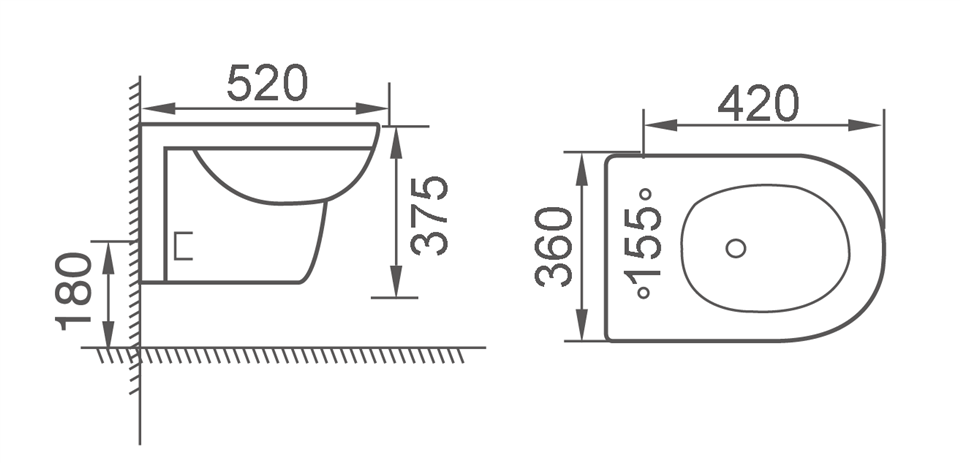

Product size	520L360W375H (mm)	Packing	Carton box

Technical Points That Actually Affect Your Project

Wall-Hung Installation System

This model requires a concealed cistern and support frame. It is not a plug-and-play replacement. However, once installed, it allows better space usage and easier floor cleaning. For renovation projects with wall access, this is often worth the extra preparation.

520mm Projection (Short Depth Design)

Many buyers focus on width or height, but projection is more critical in compact bathrooms. A shorter projection improves movement space and layout flexibility.

Washdown Flushing (3–6L Dual Flush)

Compared to siphonic systems, washdown flushing is more direct and typically uses less water. In markets with water-saving requirements, this is a practical choice.

Box Rim Structure

This design provides stable flushing performance and easier maintenance. While rimless designs are popular in some markets, box rim systems are still widely accepted for project supply due to reliability.

A Real Project Situation

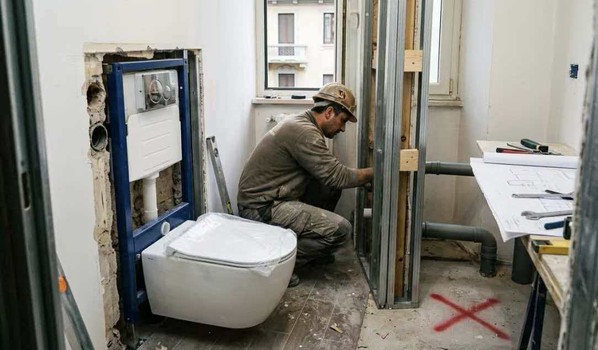

In a renovation project in Milan, a contractor initially planned to use a standard floor-mounted toilet. After removing the old unit, they found that the floor outlet position did not align with the new layout, and modifying the pipeline would increase cost significantly.

They switched to a compact wall hung toilet with P-trap and installed a concealed tank system. The installation became cleaner, and the bathroom gained more usable space. However, they had to reinforce the wall structure before installation - something that should always be considered early in the project.

How We Support Stable Supply and Project Execution

We focus on consistency and practical export support.

For first-time cooperation, we usually recommend starting with a trial order to evaluate market response.

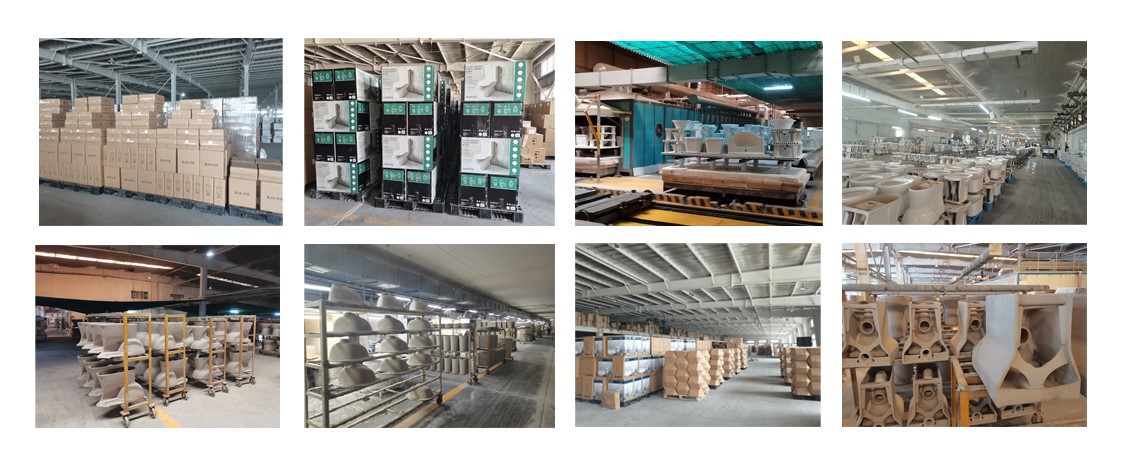

Tunnel kiln firing ensures stable ceramic density and glaze performance

Each unit is checked for flushing performance and surface finish

Export carton packaging is designed to reduce breakage during long-distance shipping

Sample orders are supported for testing before bulk purchase

OEM options are available for branding and packaging

20260130155407138113

If you are still evaluating whether this type of toilet fits your project, these guides may help:

• How to Choose a Toilet for Small Bathroom Renovation

• Wall Hung Toilet vs Floor Mounted Toilet

• Why Your Toilet Doesn't Fit Your Bathroom Layout

These articles cover installation conditions, space planning, and common mistakes that buyers often encounter during real projects.

Before You Send an Inquiry - Important Checks

Before placing an order, buyers should confirm:

- Whether the project supports concealed tank installation

- Wall thickness and frame compatibility

- Market preference for washdown vs siphonic systems

This model is not suitable for projects requiring direct floor installation without modification.

To be honest, skipping these checks is one of the main reasons for installation delays.

FAQ

Q: Can this model work with any concealed tank?

A: Not always. Compatibility depends on frame specifications and fixing distance.

Q: Is 520mm too small for comfort?

A: For most residential use, it is still comfortable, but it is designed primarily for space efficiency.

Q: What is your MOQ?

A: Standard MOQ is 20 units, suitable for testing new markets.

Q: Can you provide OEM branding?

A: Yes, logo, carton, and labeling can be customized.

Q: What is the lead time?

A: Normally 20–30 days depending on order size.

If you are currently comparing compact wall hung toilet options for renovation or distribution, this model is worth reviewing together with your installation conditions and target market before final selection.
