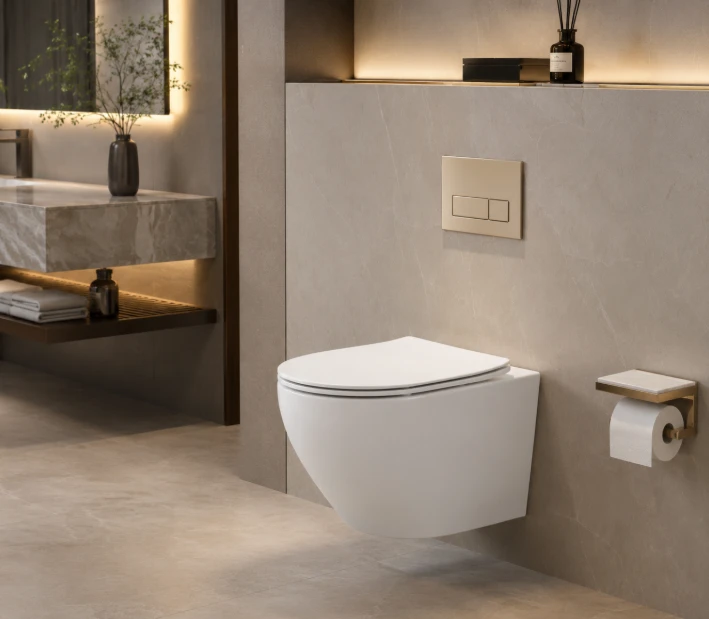

Wall Hung Toilet — WaterMark Certified, 4-Star WELS, Wholesale & OEM Supply (Model 3060)

Type	Wall hung toilet pan (wall-mounted, back-to-wall) - pan only as standard
Material	Vitreous china, fully glazed
Flushing	Rimless bowl, dual flush - 4-star WELS, 4.5L full / 3L half
Pan size	530 × 360 × 360mm (D × W × H)
Set-out (rough-in)	P-trap, 180mm rough-in
Projection	530mm - standard depth; confirm against your tightest floor plan
Cistern	In-wall cistern / frame (sold separately) - see compatibility note below
Certification	WaterMark certified · 4-star WELS (4.5L/3L) · AS 1172.1 / AS 1172.2
MOQ	50 pieces
Lead time	35 days after order confirmation
Customisation	OEM / ODM - manufacturing to your drawing

With a wall-hung pan, the pan is only half the job - the in-wall cistern and support frame are what carry the load and set the finished height. This is the single thing Australian buyers and plumbers ask us about most, ahead of looks, so we will be direct about it.

Can it go on any wall? Not directly on a plasterboard stud wall without support. A wall-hung pan hangs off a concealed frame that transfers the weight to the floor, not to the wall sheet - the frame is rated to carry a seated adult (typically 400kg static), the plasterboard is not. For a non-loadbearing or stud wall, you fit the frame and let it bear the load; for a solid masonry wall you can wall-mount the frame to the brickwork. Either way the pan bolts to the frame, never to the sheet. We flag this on every wall hung enquiry because a buyer who specs the pan but forgets the frame ends up with a fixture that cannot be installed - the most common avoidable mistake on this category.

The 3060 pan is supplied with a P-trap at 180mm rough-in to match standard Australian in-wall cistern outlets, so it pairs with the common concealed frames sold here. If you want us to supply a matched frame and flush plate with the pans, tell us at quotation and we will spec the set together rather than leaving you to source a frame that may not line up with the 180mm outlet.

A wall mounted toilet earns its place on two things a floor-standing pan cannot match. First, floor space: with nothing standing on the floor, a small bathroom reads larger and the visible footprint shrinks - which is why apartment and hotel ensuite specifiers reach for it when rooms are tight. Second, the finished look: the cistern disappears into the wall, leaving a clean back-to-wall or floating line that photographs well for a display unit or a project spec sheet. The rimless bowl on the 3060 adds a smooth interior with no hidden rim channel, listed here as a spec line for buyers who ask for it.

In Australia a toilet that is not WaterMark certified and WELS registered cannot legally be sold or installed - the two are separate checks, and a product holding one but not the other still fails. The Model 3060 genuinely holds both: WaterMark certification and a 4-star WELS rating at 4.5L full / 3L half, built to AS 1172.1 / AS 1172.2. We name only what the product actually carries, because a suite rejected at a WELS audit costs you far more than it costs us.

Behind the certificate is the production. The factory has worked in sanitaryware ceramics for decades, runs an annual capacity of around 3.5 million pieces and exports roughly 80% of output. The pans are fired in tunnel kilns run with adjustable firing curves and even cross-section temperature control along the kiln length, which keeps the glaze consistent and the mounting holes true piece to piece - important on a wall hung pan, where the bolt holes have to line up with the frame every single time, not most of the time. A 50-piece trial order and a multi-container repeat run come off the same controlled line.

Ceramic wall hung pans travel as ceramic does - the packing decides the breakage rate, so here is exactly how the 3060 ships. Each pan goes in a moulded EPS foam shell (top and bottom caps plus corner protection) inside a 5-ply export carton, then onto pallets or into export-grade timber crates for full-container loads. Foam thickness and crate strength are set for the long Australia leg, not minimised to save volume.

In our own export experience to Australia, average transit breakage on this packing runs in the region of 0.5–1% - low for ceramic sanitaryware, and we would rather quote you the real range than a zero that no ceramic shipment actually hits.

Breakage & short-shipment policy: transit-damaged or short-shipped pieces are documented with photos on arrival and replaced or credited on the next order - we agree the mechanism in writing before the first shipment so there is no argument after the fact. Per-container loading quantities are confirmed per order; send us your container plan (20GP or 40HQ) and we will quote the exact piece count and packing so your landed cost per unit is clear up front.

We can supply a paid sample of the 3060 before a bulk order - sample cost and freight are credited against your first production order. Lead time for a sample is shorter than the 35-day production run; confirm at enquiry. Before any container ships, pans are checked for glaze defects and water absorption, and the mounting-hole positions are dry-checked against the frame spec so the bulk run matches the sample you approved. If you need a specific white tone or glaze matched across repeat orders, lock it at sample stage and we hold it as the reference for the rollout.

MOQ: 50 pieces - low enough to trial the wall hung range before committing a project to it.

Lead time: 35 days after order confirmation.

OEM / ODM: we manufacture to your drawing - adjust styling, badge with your brand, or supply a matched in-wall frame and flush plate set.

Loading: confirmed per order; tell us your container plan and we quote per-container quantity and packing.

This pan was built for one buyer in mind: distributors and project specifiers - hotel fit-outs, apartment developments and renovation supply - who want a compliant, space-saving wall hung toilet they can spec at volume and that clears WaterMark/WELS sign-off the first time. The rimless bowl and the in-wall design are spec lines that answer real buyer questions, not sales gimmicks.
